Upload your designed single layer PCB layout in pdf format in 100% actual size, while placing the order.

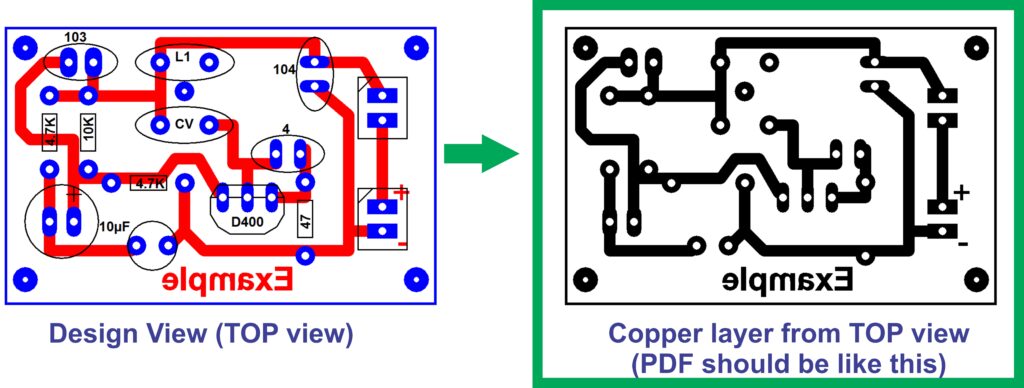

PCB layout should be “Top view of the copper layout” (Non mirrored Layout) as below example.
- These PCBs are most suitable for prototypes & Testing works.
- Track(path)/pad gap should be more than 0.5mm. (Best more than 1mm).
- Track(path) width should be more than 0.8mm (Best more than 1.2mm).
- Try to make wider tracks and bigger pads for have quality finished PCB.
- The size of the PCB should be smaller than 200mm x 200mm. If it exceeds that size please contact us for more details.
We guarantee to complete your PCB within 2 days to delivery service or your can collect it from shop.

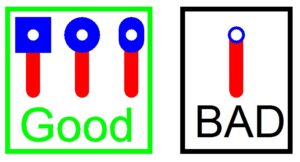

Pads/ Soldering points:

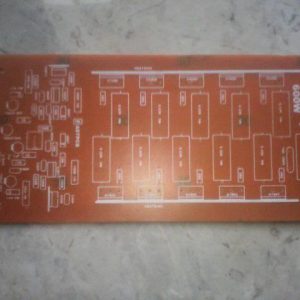

We undertake your PCB etching project and deliver quality finished PCB. Process locally any quantity and any size PCB of your single layer designs.
You can provide your PCB design and get a PCB etching done!
More Details: https://nilambaraelectronics.com/pcb-designing/
We are professionals in PCB designing according to circuit diagrams or schematics you are giving. We are using professional softwares and methods for design pcbs to make 100% correct design with the diagrams.
Design PCB for your schematic with the most optimum component placements and in any shape as per your requirement.
You can provide a schematic and get a PCB design done!
We undertake your PCBs to solder the components according to your requirements. Provide your relevant components and we can put the components and solder the PCB. We are using professional methods to give you best and quality service for your satisfaction.
Charges: Rs. 3.00 per single point.
You can provide your PCB design and get a PCB Soldering done!
